High-Quality Equipment & Compliance with International Standards：

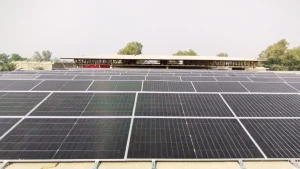

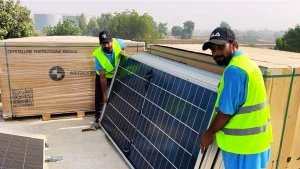

• Solar Modules: Chint Astronergy N5 Bifacial Series 585W (Tier 1, IEC
61215 & IEC 61730 certified)
• Inverter: Chint SCA 125K-T-EU (IEC 62109, IEC 61727, CE certified)
• DC Cabling: Fast DC Cable 4 mm², 16 mm² (TUV, IEC 62930
compliant)
• AC Cabling: Fast AC Cable 95 mm² * 4 Core, 240 mm² (IEC 60502-1,
LSZH insulation)

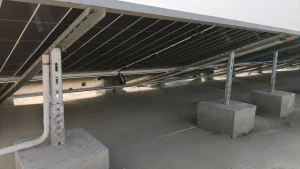

• 14 Gauge Hot-Dip Galvanized Steel Mounting Structure (ISO 1461
Compliant, 20+ Years Lifespan)
Earthing System:
• Panel-to-Panel & Panel-to-Structure Earthing by using 2.5mm cooper wire (IEC 62561 compliant)
• Structure-to-Structure Earthing by using Fast 50 mm² All-Aluminum Conductor
• Dedicated Lightning Protection System (Lightning Arrestor Installed, IEC 62305 certified)
• More than 10 Earth Electrode Holes Installed (deep grounding rods, IEC 60364-5-54 compliant)
Mechanical & Electrical Protection:
• Aluminum Cable Tray (corrosion-resistant, IEC 61537 compliant)Electrical Conductor Grease Applied (reduces oxidation & improves conductivity)
Safety Precautions:
• IMOU Cruiser Dual 360° view cameras installed
• Chint Connect real-time monitoring system installed
